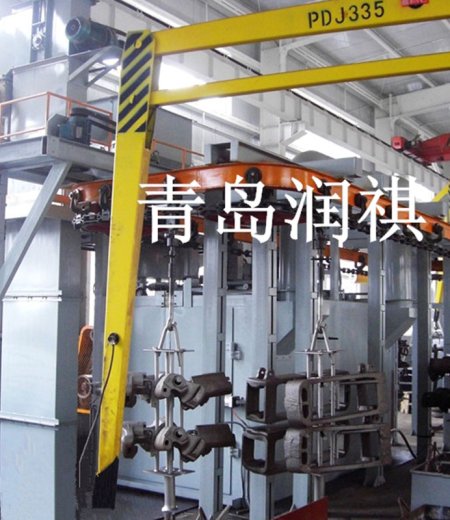

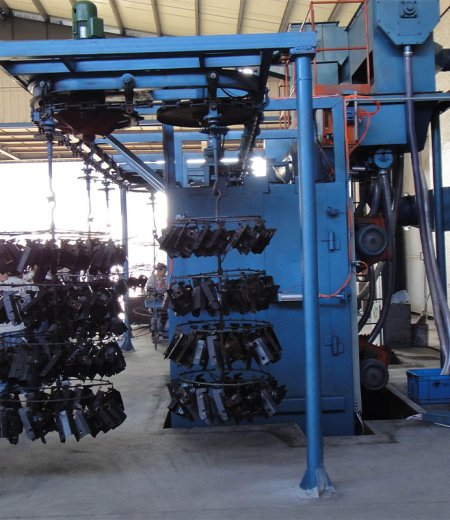

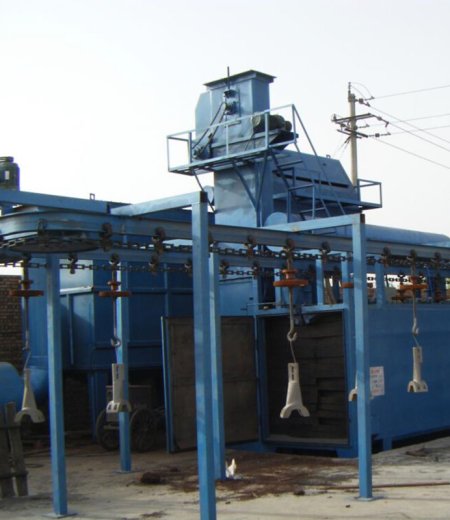

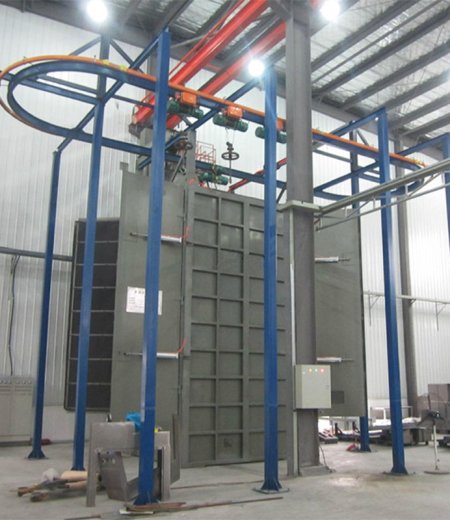

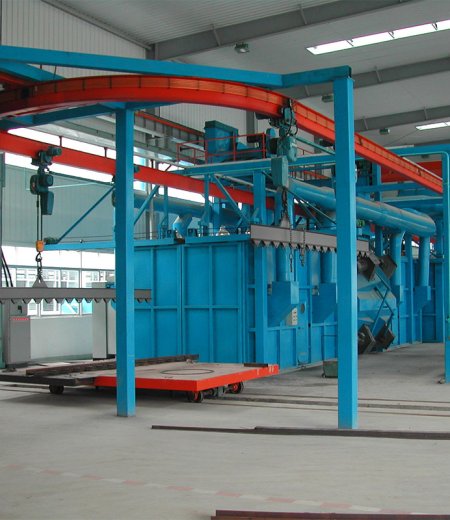

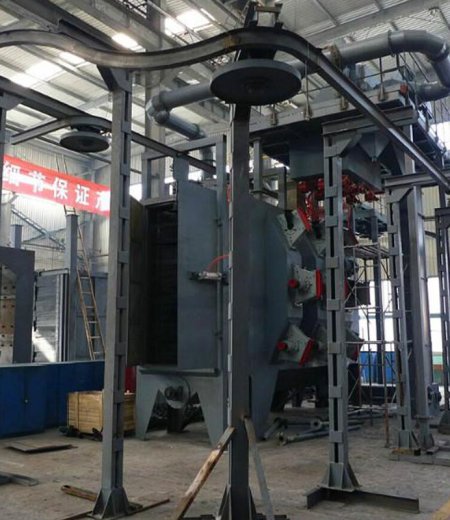

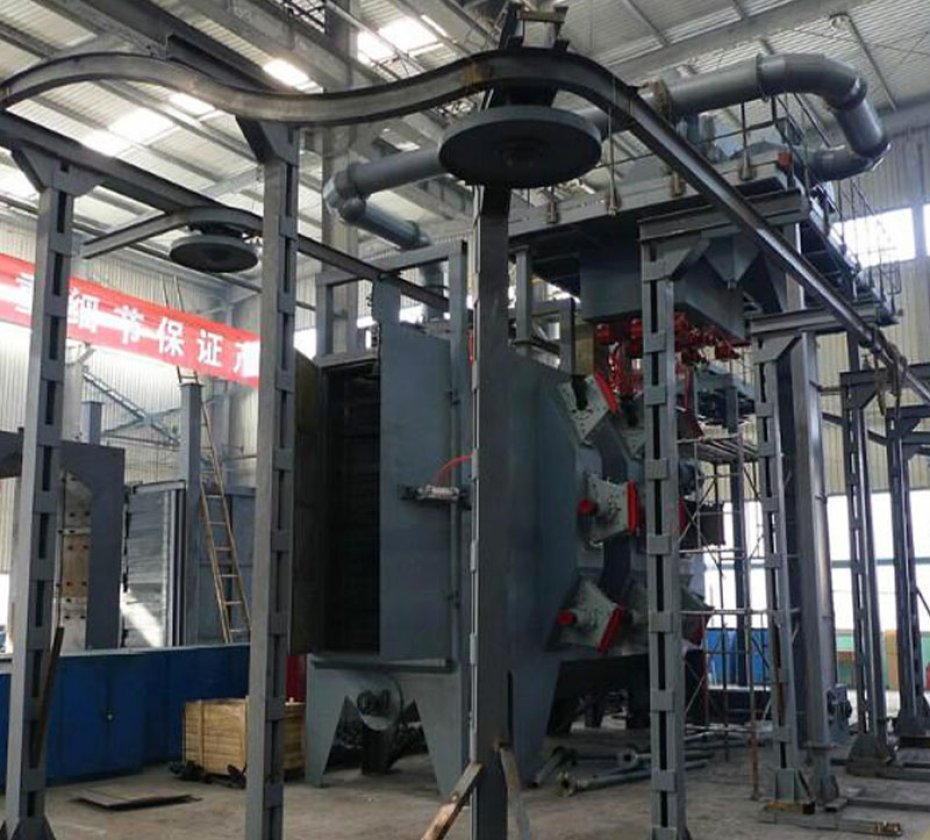

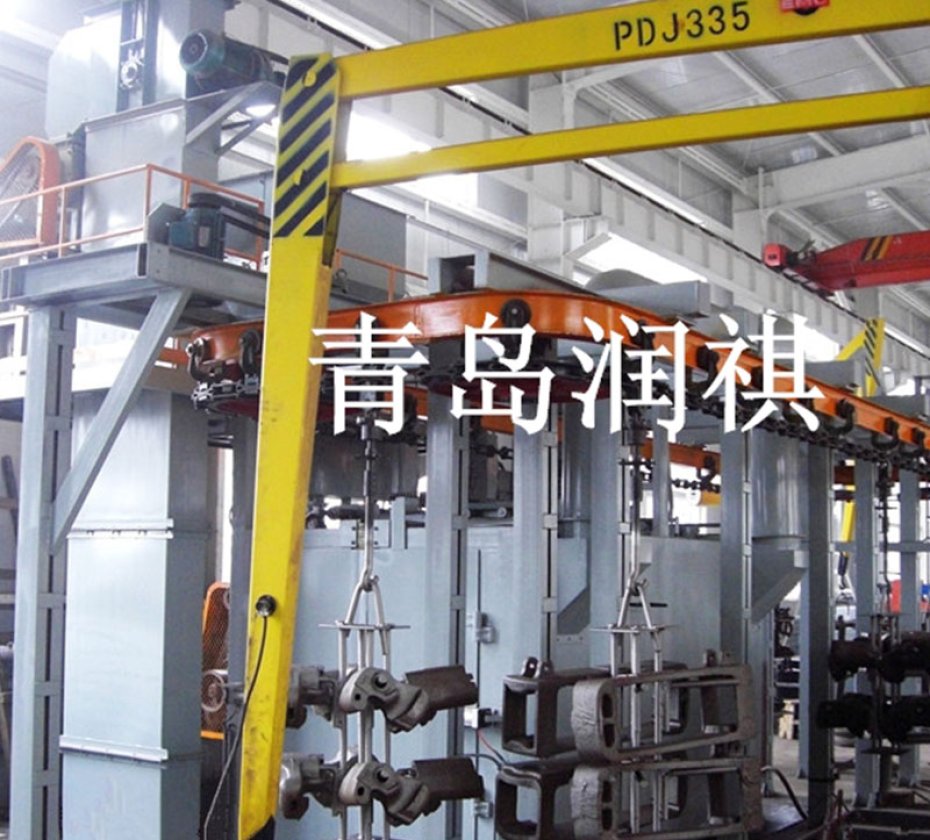

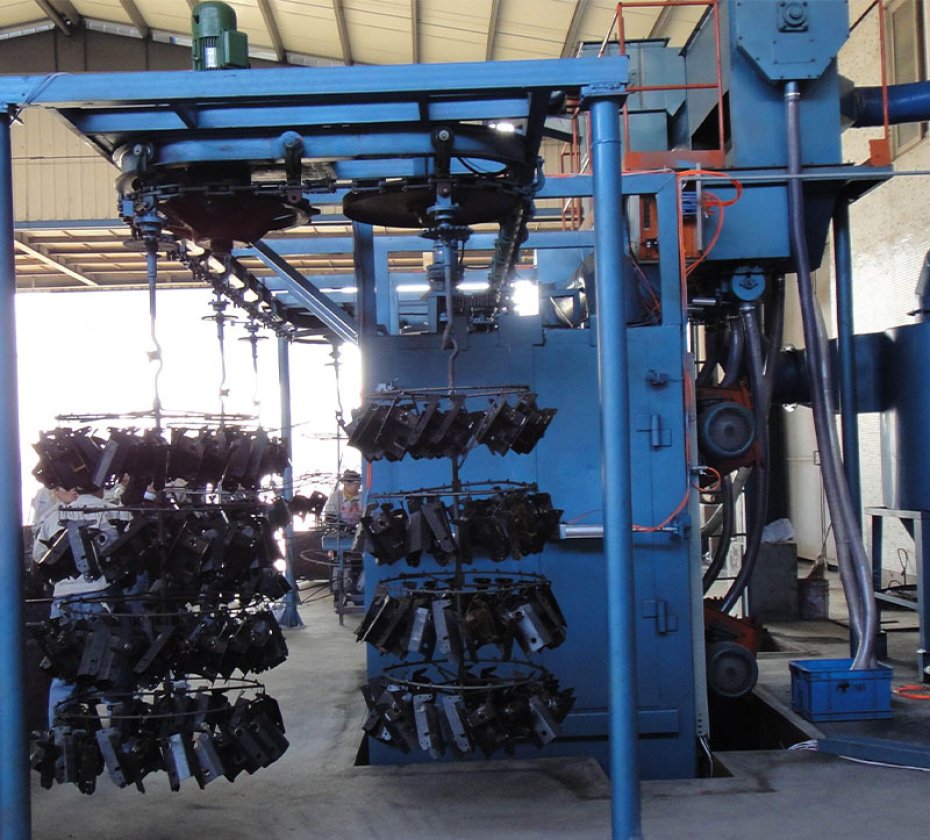

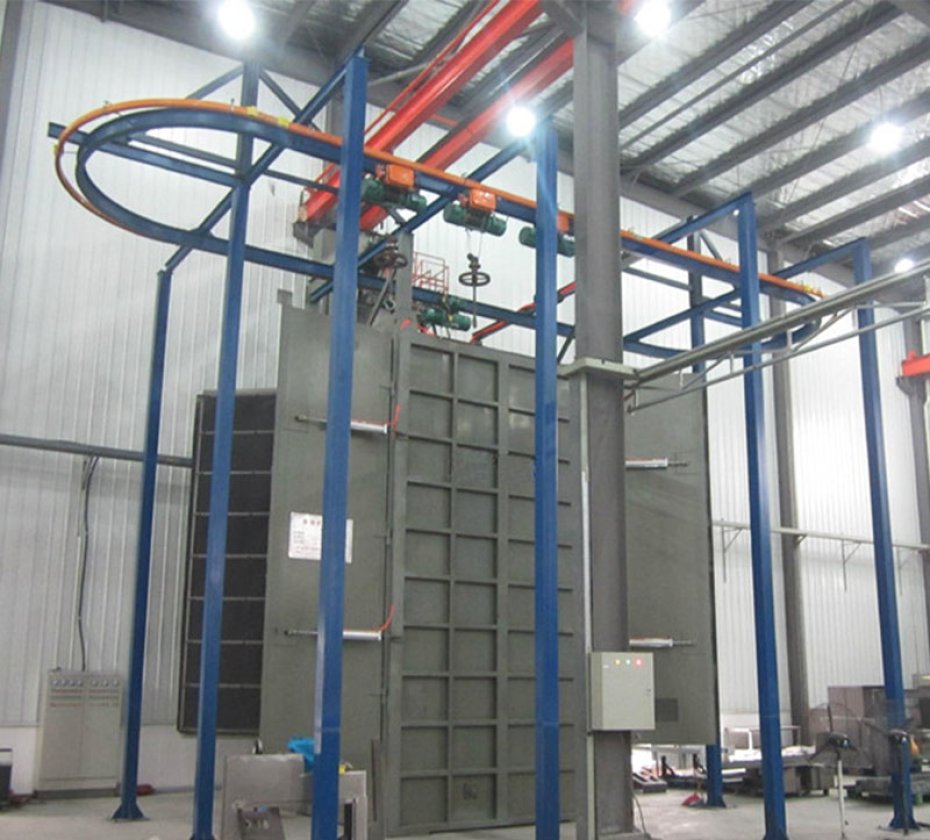

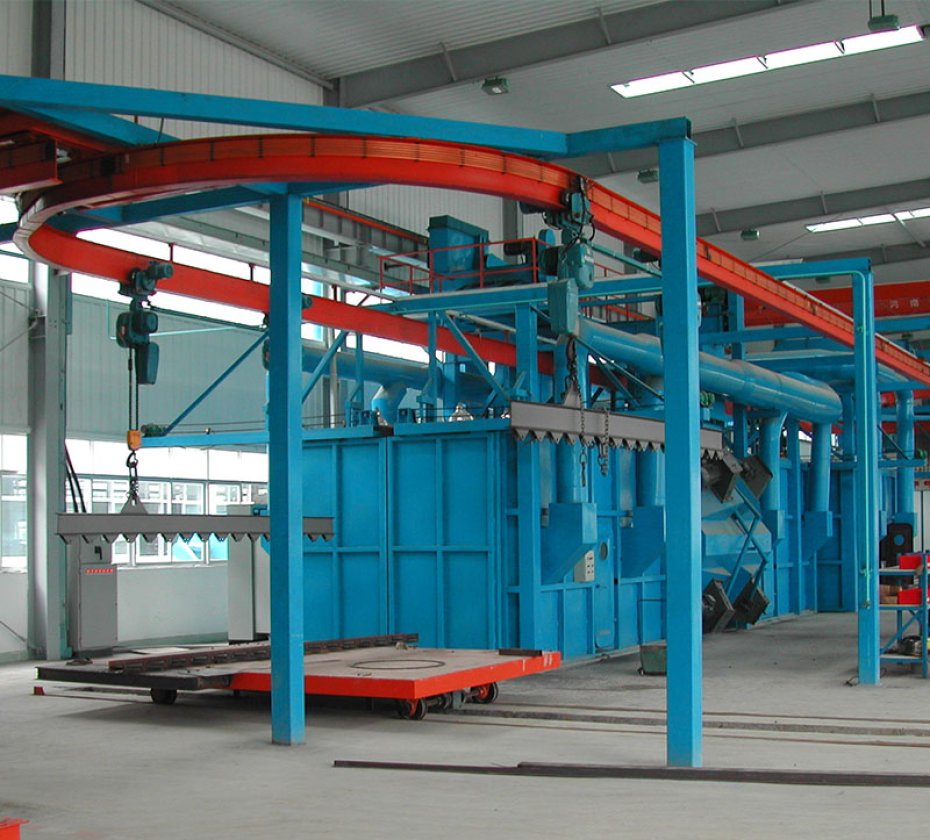

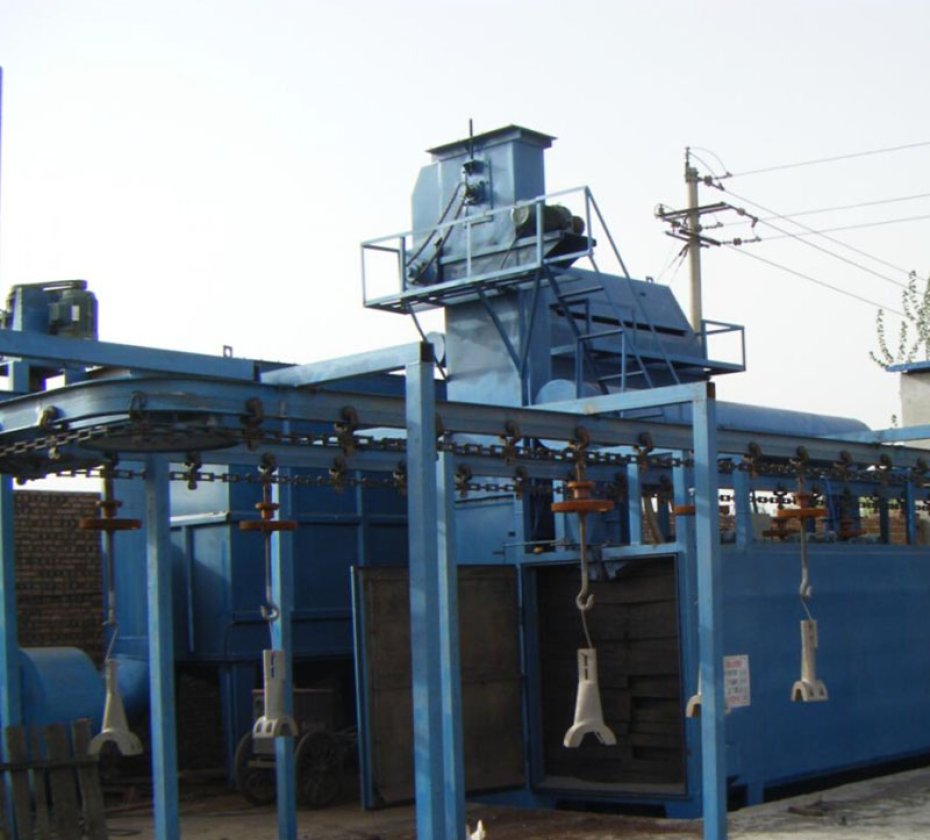

hanging chain shotblasting machine is suitable for iron castings, steel casting, forging and stamping workpiece cleaning, particularly suitable for forging, casting workpiece cleaning, to remove the adhering sand, rust, scale, dirt of workpiece surface, make the workpiece presents clean surface, eliminate the internal stress of workpiece, improve the fatigue resistance, increase the workpiece painting adhesion, and eventually to improve workpiece surface and inner quality.As a rule, overhead rail shot blasting machine is offered either for batch and continuous processing.
Application
It is particularly recommended for high output and in-line production and painting installations. It is also is especially suitable for the treatment of:
1) Aluminium die-castings and its alloys
2) Casting of ferrous and non-ferrous metals (with application of special devices such as magnetic separators, vibrating screens, etc.)
3) structural steel works
4) gears, for heat treatment
Technical Parameters
Item/model | Q383C | Q483H | Q485H | Q583H |
Productivity (hook/h) | 38~50 | 20 | 30~40 | 40 |
Hook running speed (m/min) | 0.35~3 | 3~8 | 3~8 | 0.8~3 |
Hook spacing (mm) | 600~800 | 600~1000 | 600~1000 | 500~900 |
Cleaning workpiece size (mm) | Φ(500-700) *1600 | Φ(500-700) *1600 | Φ(500-900) *1600 | Φ(400~800) *1600 |
Abrasive flow rate (kg/min) | 4*250 | 2*250 | 4*250 | 4*250 |
Ventilation capacity (m3/h) | 10500 | 5000 | 10500 | 10500 |
Power (kw) | 82.8 | 52.8 | 83.2 | 85 |
Advantage
A. Casting surface cleaning and strengthen
B. Thick steel surface rust removal
C. PLC control , can achieve automatic operation
D. Deburring, deflashing and Cosmetic finishing
E. When production requires dictate batch processing
F. Small to medium size castings, fabrications and heat-treated parts
G. Suitable for the unfavorable impact of long and thin, thin wall parts cleaning
This machine is suitable for many varieties, small and medium-sized batch of cast iron, steel casting, forgings and steel structural parts of the surface cleaning and shot blasting strengthening, to remove the surface of the workpiece sand, rust, oxide, dirt, etc. Make the surface of the workpiece show metal color, eliminate the internal stress of the workpiece, improve the fatigue resistance of the workpiece, increase the paint film adhesion when the workpiece is painted, and finally achieve the purpose of improving the surface and internal quality of the workpiece. And improve the corrosion resistance of mechanical products and metal profiles and improve the fatigue resistance of steel, extend its service life; Optimize the process state of the steel surface to achieve the purpose of complete cleaning.
Split type machine (include :main shot blasting machine and dust collector)
The steel strip shot blasting cleaning machine is specifically designed for high-performance shot blasting, descaling, and surface cleaning of carbon steel strips, stainless steel strips, and low alloy strips.
Steel pipe outer wall shot blasting machine is suitable for cleaning the outer wall of steel pipe to remove the sand and rust on the surface of the workpiece.
