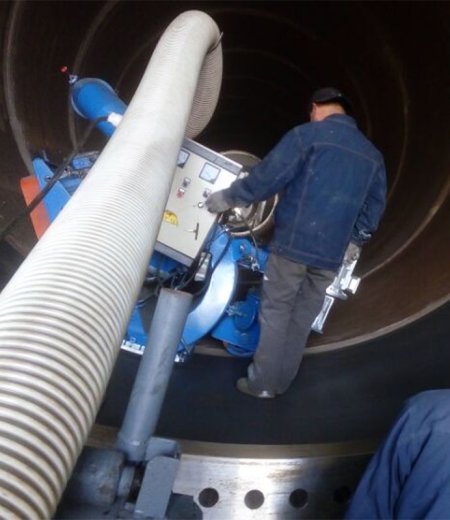

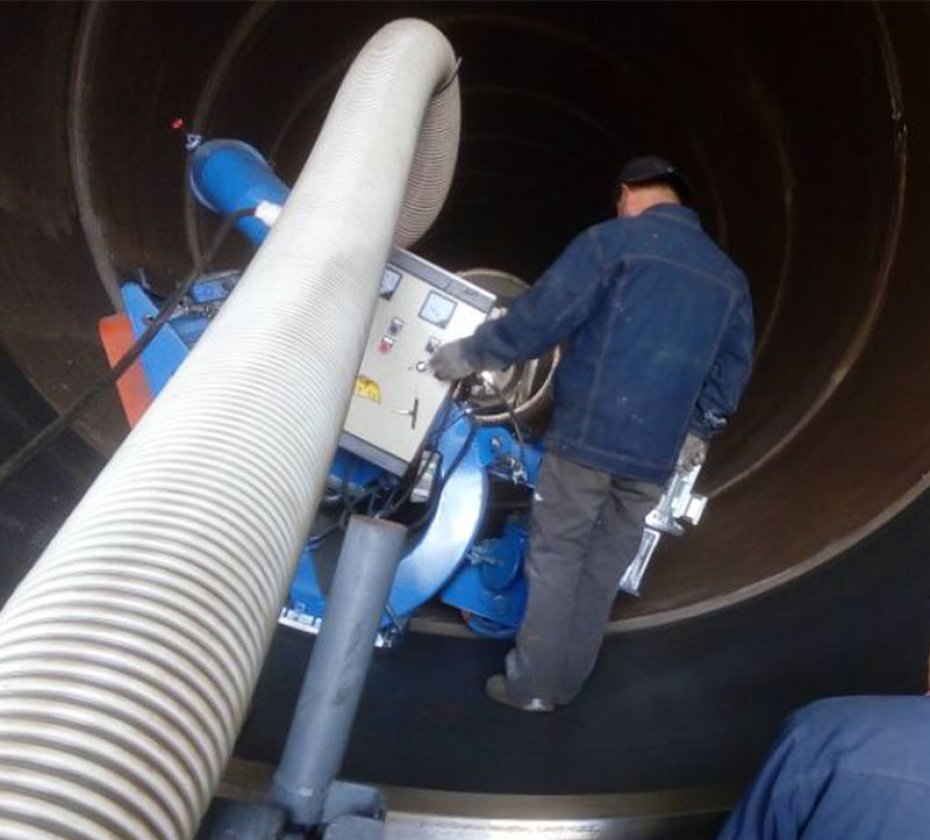

The Wind tower inner surface shot blasting machine mainly for the inner and outer walls of the wind turbine tower. Is a new type of special equipment designed and manufactured according to user requirements. It can also use for large steel pipes. It can apply strong shot blasting to the surface of wind turbine towers and large steel pipes to remove rust, welding slag, and oxide skin, achieving a uniform and consistent metallic luster, thereby improving the coating quality and anti-corrosion effect of steel pipes.
Cleaning of tanks and wind towers
● Layout of shot blaster: Due to the large processing capacity of the tank, It equipped two shot blasters

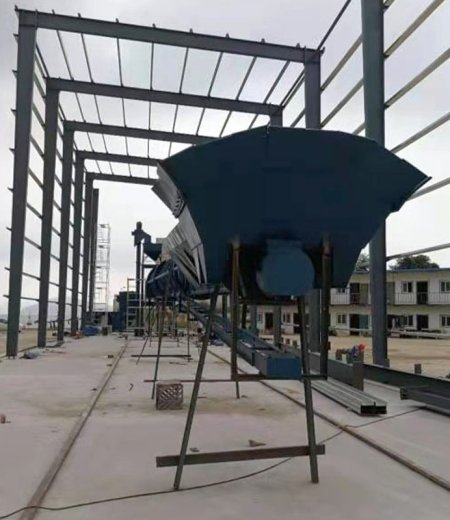

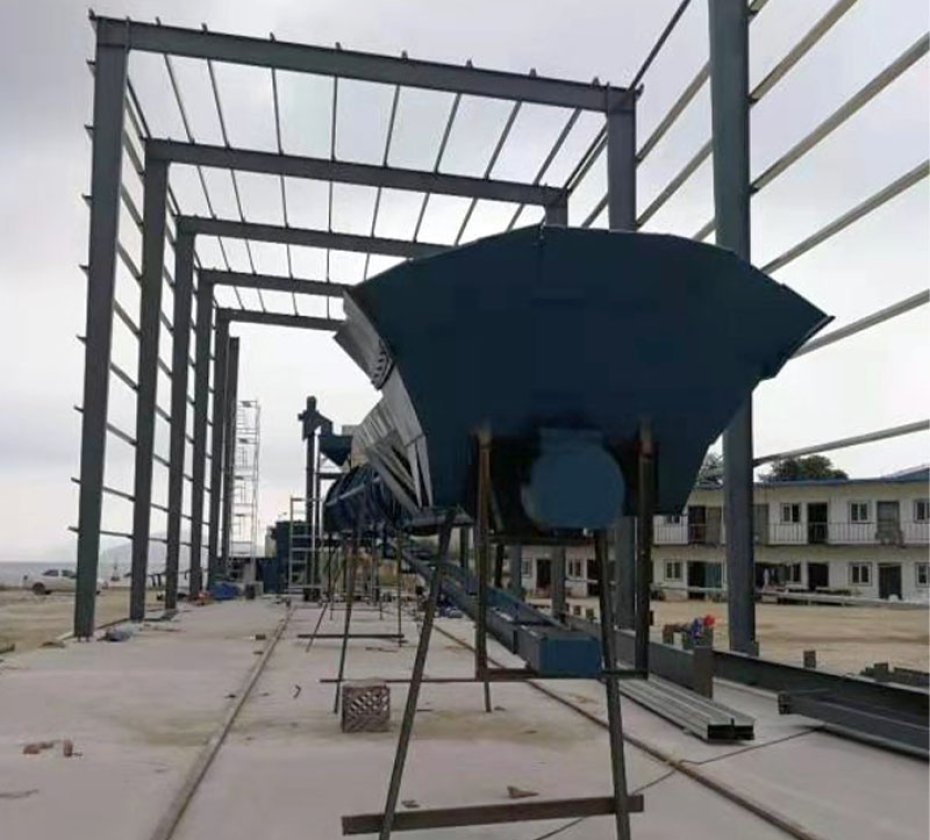

● Moving platform system: The shot blaster is designed and arranged on a movable platform, Using a reliable labyrinth seal and magnetic strip seal structure. The movable shot blasting mechanism is driven by a reducer with braking function as a whole.

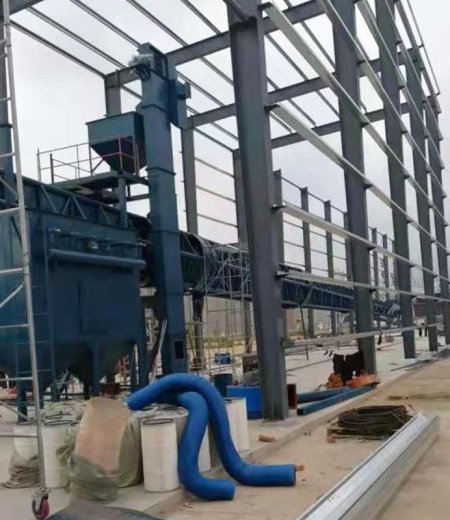

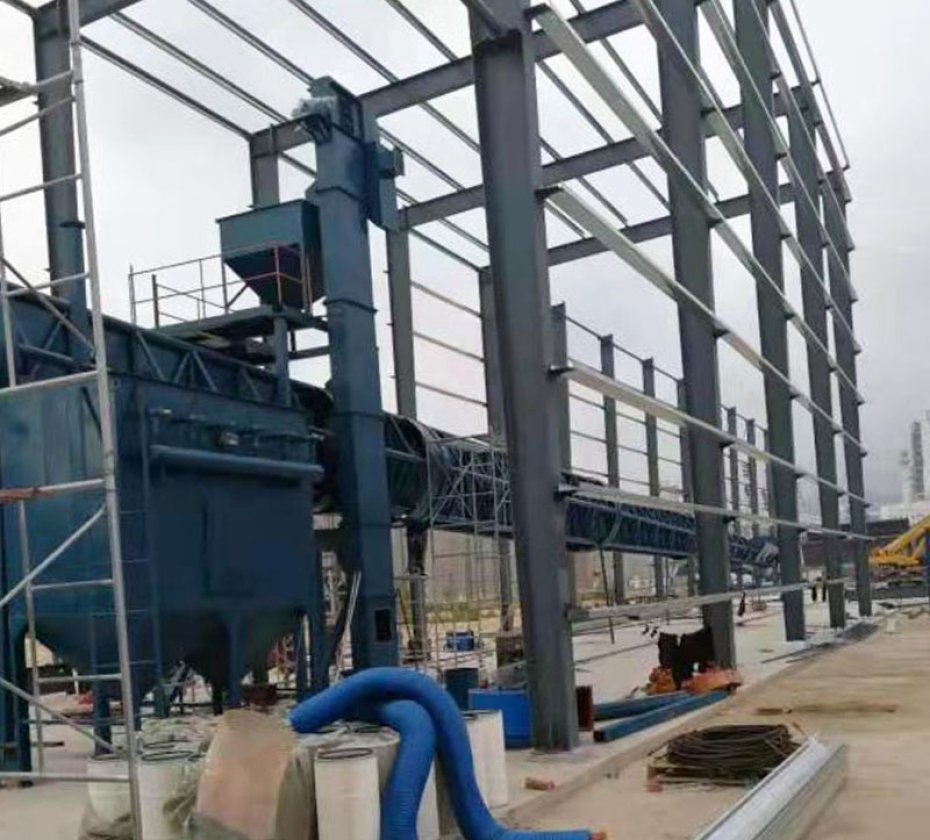

● Pellet material circulation purification of shot blasting machine: using gravity descent+bucket elevator+overflow type full curtain multi-stage air separation separator, using dedicated polyester core lifting machine transmission belt,
● Shot blasting dust removal system: The shot blasting machine adopts a pulse filter cartridge dust collector, with a dust removal efficiency of ≥ 99% and a dust emission of less than 90mg/m3
1 | cleaning range | 550mm |
2 | Working pieces | φ≥2000mm |
3 | Blasting capacity | 2*185（(kg/min) |
4 | Lifting capacity | 21T/H |
5 | Separation capacity | 21T/H |
6 | Ventilation Capacity (m³/h) | 7350m³/H |
7 | Shot blasting wheel diameter | 400mm |
8 | Suggested diameter of steel shot | 1.0-1.5mm |
9 | Steel shot consumption | 100g/㎡ |
10 | dust collector | automatic back flow vacuum cleaner |
Surface laitance(floating slurry) removed, to make preparation to the next step paving and painting of various materials.
